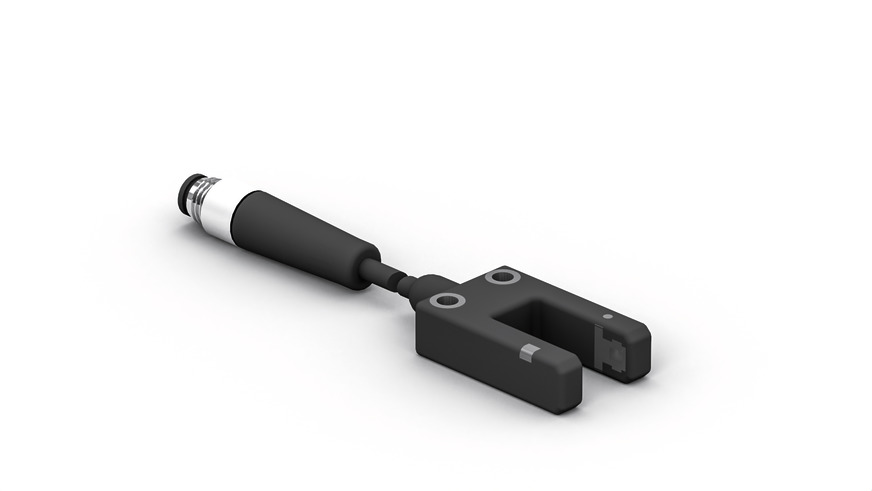

Fork sensors in a miniature design are photoelectronic sensors. The emitter and the receiver are positioned opposite each other in a housing as a barrier. As soon as the light beam is interrupted, the sensor’s output switches. The use of visible red light and the beam marking on the fork legs make it easier to align the fork sensor. This fork sensor can be used to detect small holes, grooves and notches as well as to detect small parts. The minimal construction volume, the flexible connection cable and the integrated mounting holes enable use in confined installation situations, such as shuttles, AGVs or robot grippers

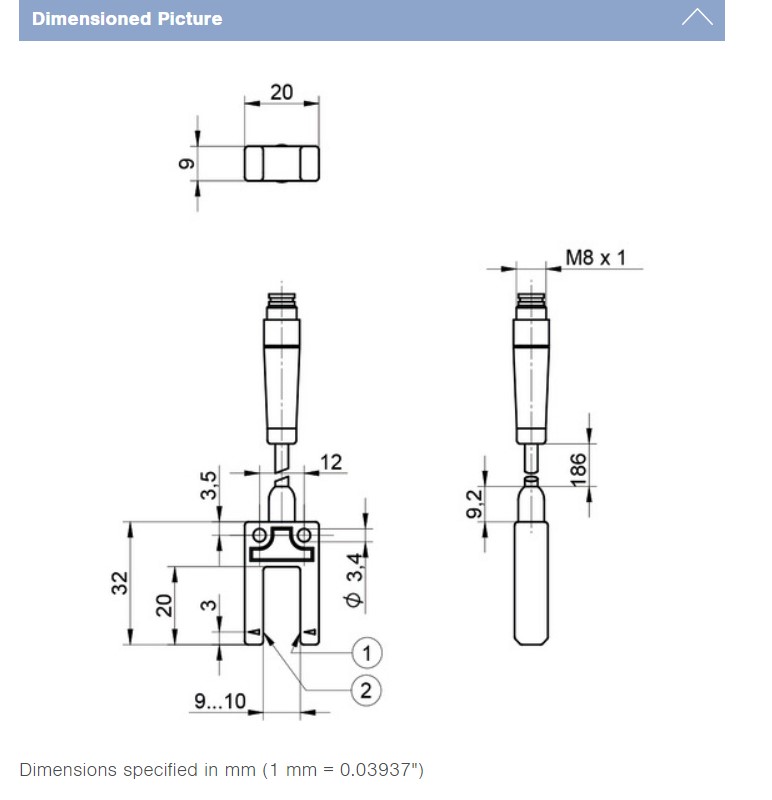

- Miniature design (20 × 40 mm)
- 2 switching outputs and switching status indicator
- Sensitivity set via IO-Link 1.1

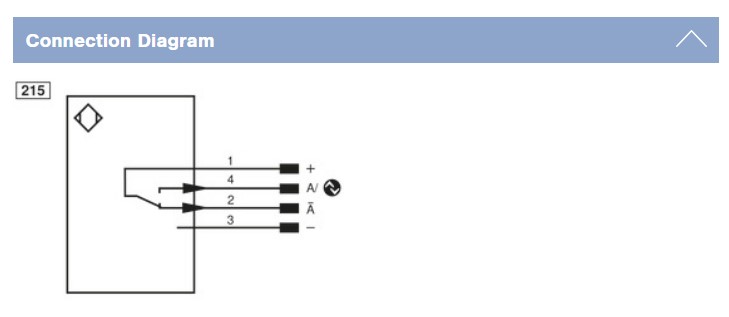

- Flexible cable outlet with 4-pin plug, M8 × 1
- Detect extremely small parts starting at 0.7 mm
