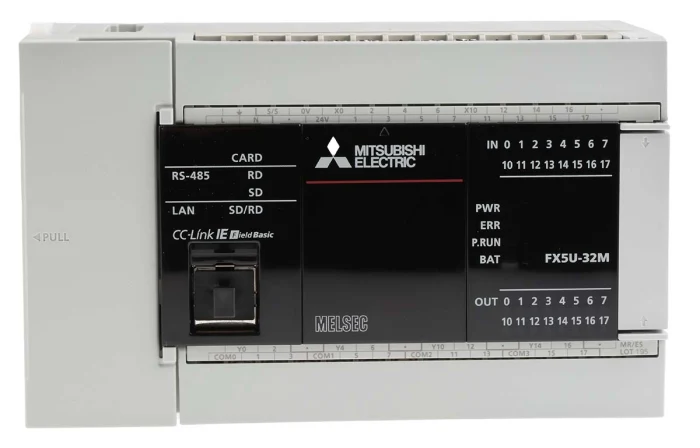

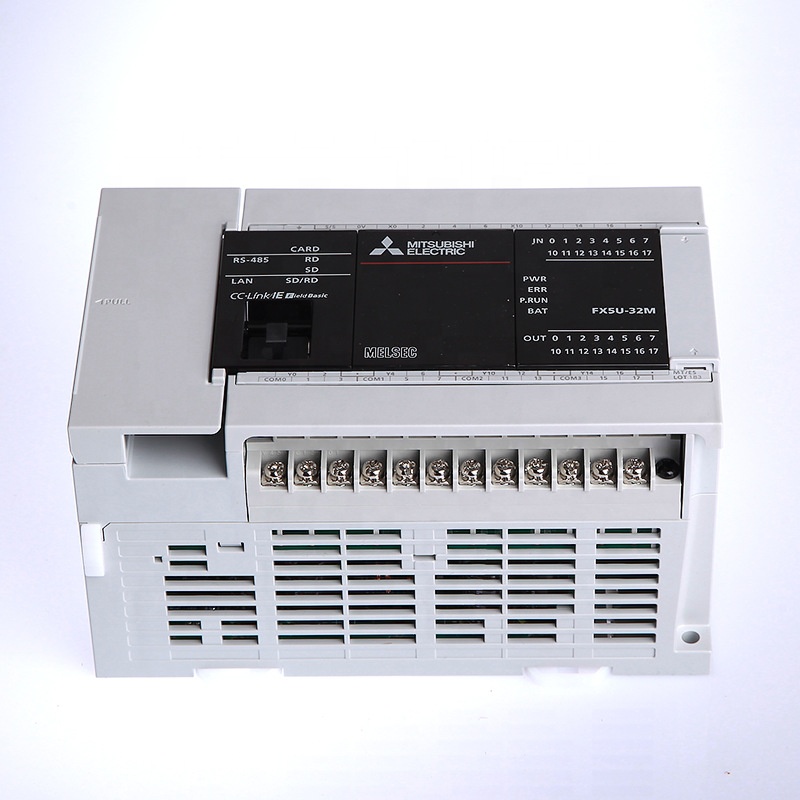

FX5U – CPU Modules
The first model in the iQ-F series is the FX5U, offering high performance in a compact, cost effective package.
The FX5U continues the FX tradition of total flexibility by offering a huge range of new and existing add-on options which further enhance the built-in functions of Ethernet, analogue I/O, data logging, position control, security, communications and networking functions incorporated as standard.
The FX5U will provide users with the ability to specify more powerful systems but with fewer overall components, saving time and cost.
Mitsubishi FX5U
FX5U CPU base units with very fast processing time
Versions with up to 256 inputs and outputs
Expanded input/output area for networks and complex applications
Can be upgraded by combining with expansion modules
Built-in SD card slot
Run/Stop/Reset switch
Built-in Ethernet port, RS485
Displays the input and output states via LEDs
Integrated real-time clock
Programming software GX Works3
Specifications
| Attribute | Value |
| Brand | Mitsubishi |
| Manufacturer Series | FX5U |
| For Use With | MELSEC IQ-F Series IQ Platform-Compatible PLC |
| Dimensions | 285 x 90 x 83 mm |
| Voltage Category | 100 → 240 V ac |
| Standards Met | CE, cULus Listed |
| Communication Port Type | Ethernet, RS485 |
| Program Capacity | 64 k Steps |
| Depth | 83 mm |
| Length | 285 mm |
| Width | 90 mm |
| Mounting Type | Panel Mount |
| Programming Language Used | FBD, Ladder Diagram, ST |
| Number of Communication Ports | 2 |
| Input Type | Sink, Source |
| Number of Inputs | 40 |
| Maximum Operating Temperature | +55 °C |
| Memory | 120 (Device Memory) kB, 5 (Data Memory) MB, 64 (Program Capacity) k steps |
| Programming Interface | RJ45 Connector (Ethernet Communication) |
| Output Type | Relay, Transistor |
| Minimum Operating Temperature | 0 °C |
| Network Type | Inverter Communication, MELSEC Communication protocol (3C/4C Frames), MELSOFT Connection, Modbus RTUI, N:N Network, Predefined Protocol Support, SLMP (3E Frame), Socket Communication |
| Number of Outputs | 40 |
