Igus Iglidur® M250 Double Flange Bearings MKM

$1.00

Price Summary

Maximum Retail Price
(incl. of all taxes) $1.00
Selling Price $1.00
Total $1.00

In Stock

Igus

SKU: IGUSM250DFMMKM Categories: IGUS, Mechanical Components, Plain Bearings

Description

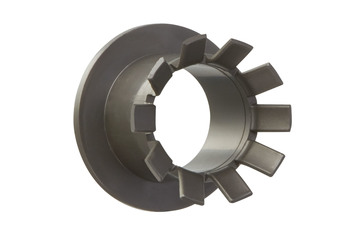

Double flange bearing: press in, turn it down, ready
Easy to install double flange bearing made from our tried-and-tested iglidur® M250 material. Flanging the disks secures the bearing axially even in loosely toleranced mounts.

When to use it?

When a flanged bearing is needed When the housing bore is more than 4 mm long
When the axial safety is not ensured by press fit
When a two-side flange is required as a thrust surface

When not to use it?
When maximum compressive strengths are required: iglidur® G
When a simple press-in bearing is needed: iglidur® M250
When a clip-on sheet metal feedthrough is sought: iglidur® G

Please contact us, if you need a tailor-made double-collar bearing for your application. We will be pleased to support you by the project management based on numerous successfully implemented customized solutions and we will give you a corresponding estimate.
