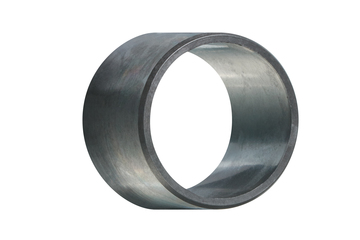

iglidur® L500 | For extreme rotational speeds
iglidur® L500 is a plain bearing material for high speeds, fast sliding movements with low loads. Due to the low thermal expansion and low moisture absorption, bearings can be manufactured with very little clearance. Applications which feature these advantages are fans, small motors, fast-running sensors or magnet technology.
Typical applications
Automotive
[Link id=”26″]
Machine tools
Find more applications here:
Industry solutions
When to use it?
| When not to use it?
|
Use our filter options to find the suitable product

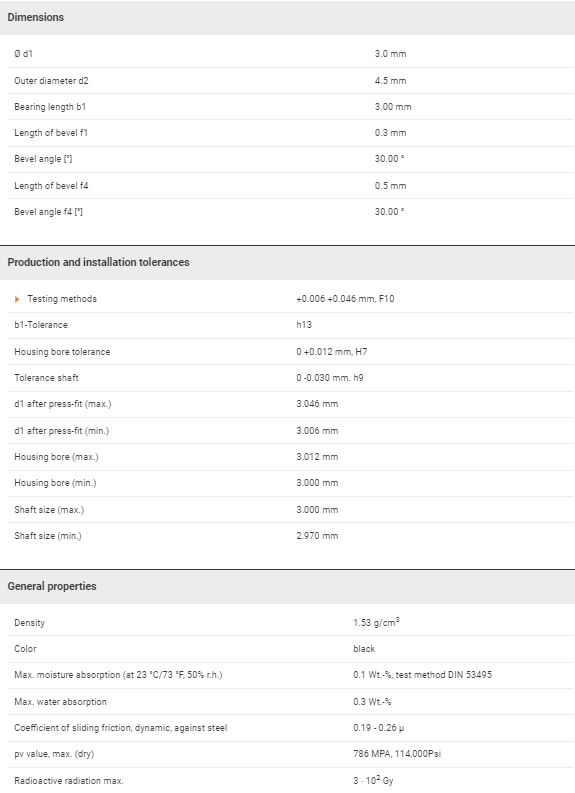

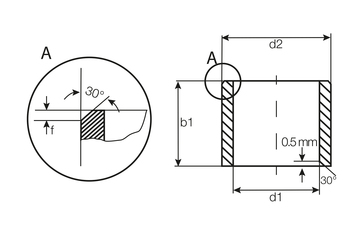

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® plain bearings depend on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be installed with a smaller bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods
Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter is only adjusted to the appropriate tolerance after pressing into the housing hole. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearings. Axial or radial movements in the housing are thus reliably avoided.
