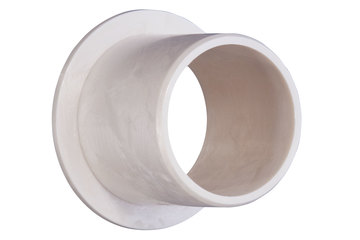

iglidur® HSD350 | Media-resistant and hygienic at low costs
The new material enables continuous use where hygiene is important, including regular sterilisation, with an outstanding price/performance ratio.
Typical application areas
Fluid technology
Medical technology
You can find further applications here:
Industry solutions
When to use it?
| When not to use it?
|
Use our filter options to find the suitable product

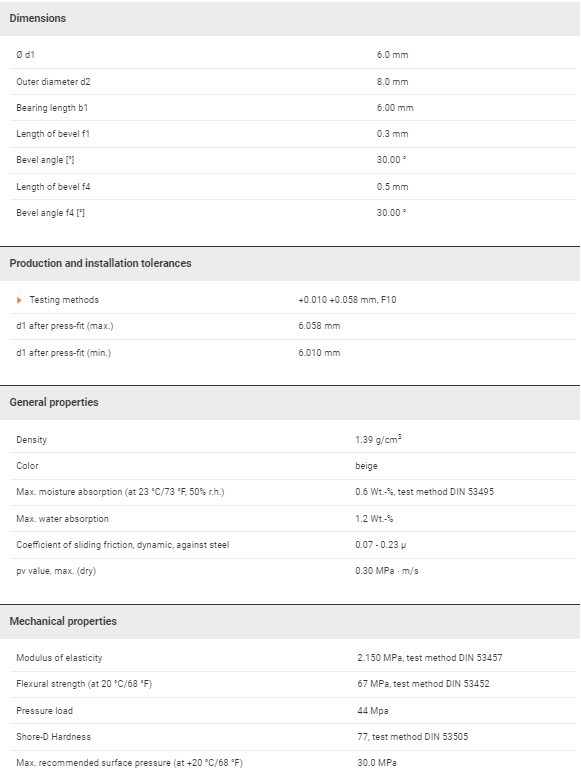

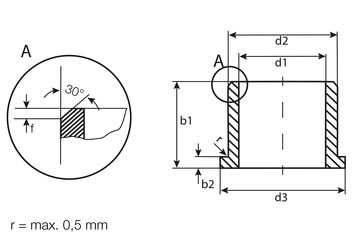

Tolerances and measurement system
The installation dimensions and tolerances of the iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are imperative. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods
Assembly
iglidur® bearings are press-fit bearings. The inner diameter adjusts only after press-fit in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
