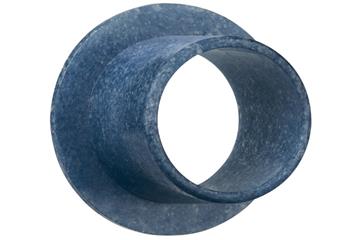

Igus Iglidur® A350 Sleeve Bearing With Flange mm

$1.00

Close
Price Summary
  • $1.00
  • $1.00
  • $1.00
In Stock
Clear
SKU: IGUSA350SBWFMM Categories: , ,
Description

iglidur® A350 | The endurance runner at higher temperatures in the food sector
iglidur® A350 knife edge rollers are designed that that they can be used for a variety of loads in the food and packaging industry. Even high loads are no problem and the rollers work reliably without additional lubrication.

Typical applications

Food industry
Beverage industry
Medical technology

Find more applications here:
Industry solutions

When to use it?

  • When a lubrication-free deflection of conveyor belt is required
  • When FDA compliance is required
  • When a precise guiding is required
  • When wear resistance and FDA are required for high loads
  • When the bearing is used in acid environments
  • When a cost-effective and lightweight solution is required
When not to use it?

  • When high belt speeds have to be achieved
  • When temperatures are continuously higher than +180 °C
  • When high forces are applied on the belts
  • When a static knife edge is
    required

Use our filter options to find the suitable product

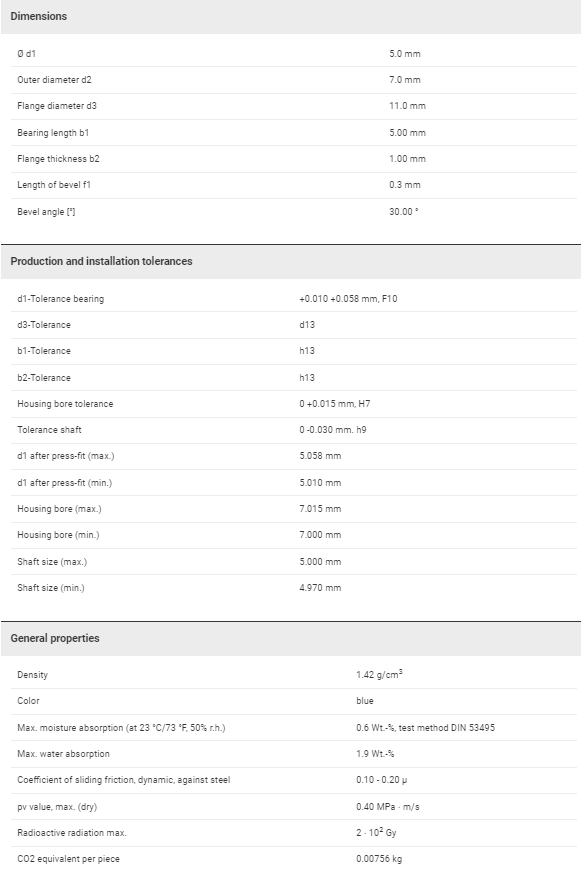

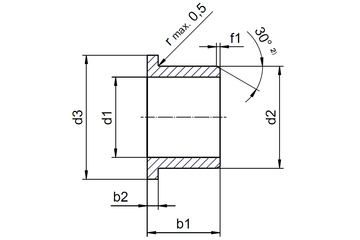

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® knife edge rollers depend on the material and wall thickness. In the case of the material, moisture absorption and thermal expansion are decisive.

Additional information
Part no - Diameter

A350FM-0507-05, A350FM-0608-04, A350FM-0608-06, A350FM-0608-08, A350FM-0810-05, A350FM-0810-07, A350FM-0810-09, A350FM-0810-10, A350FM-1012-07, A350FM-1012-09, A350FM-1012-10, A350FM-1012-12, A350FM-1012-17, A350FM-1214-07, A350FM-1214-09, A350FM-1214-12, A350FM-1214-17, A350FM-1416-12, A350FM-1416-17, A350FM-1517-09, A350FM-1517-12, A350FM-1517-17, A350FM-1618-12, A350FM-1618-17, A350FM-1820-12, A350FM-1820-17, A350FM-2023-11, A350FM-2023-16, A350FM-2023-21, A350FM-2528-11, A350FM-2528-16, A350FM-2528-21, A350FM-3034-16, A350FM-3034-26, A350FM-3539-16, A350FM-3539-26, A350FM-4044-30, A350FM-4044-40, A350FM-4550-50
