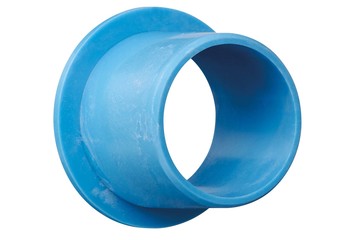

iglidur® A181 | The universal bearing for food contact

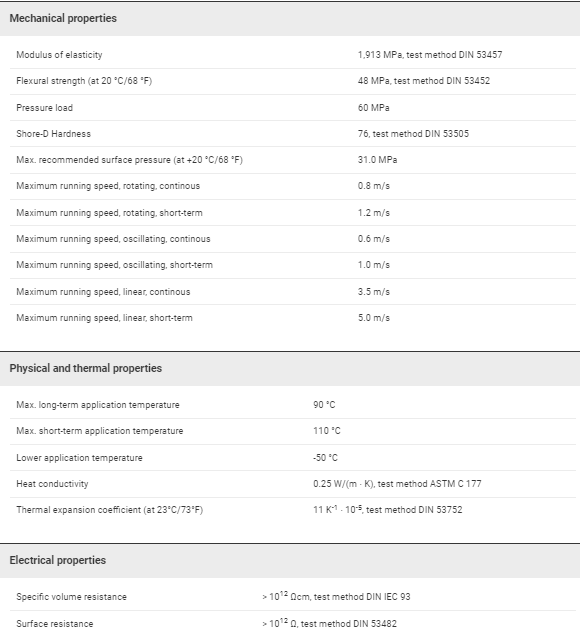

iglidur® A181 offers both FDA and 10/2011 EC conformity. The blue colour also offers the “optical detectability” often required in the food sector. In terms of mechanical properties, temperature and media resistance, directly comparable to iglidur® A180, iglidur® A181 is even better with regard to wear resistance in most cases.
Typical applications
Beverage industry
Food industry
Medical technology
Find more applications here:
Industry solutions
When to use it?
| When not to use it?
|
Use our filter options to find the suitable product

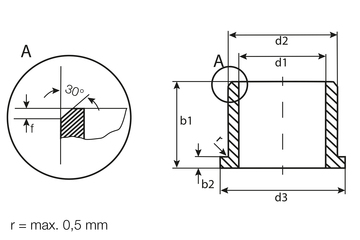

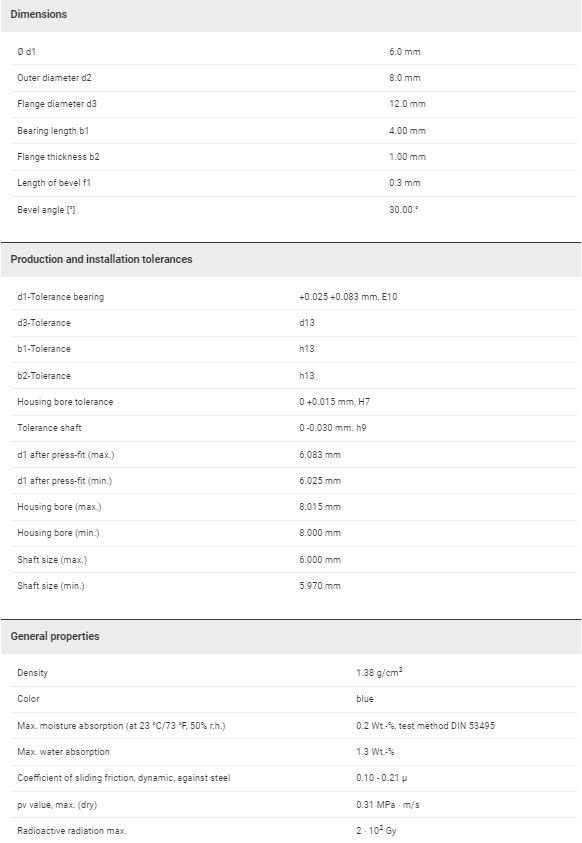

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® plain bearings depend on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be installed with a smaller bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods
Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter is only adjusted to the appropriate tolerance after pressing into the housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearings. Axial or radial movements in the housing are reliably avoided.
