DESCRIPTION
The 7011 valve is a direct-acting plunger valve. The stopper and the core guide tube are welded together to increase pressure resistance and leak-tightness. Various housing and seal material combinations are available depending on the actual application. A Bürkert-specific flange variant (SFB) enables the space-saving arrangement of valves on a multiple manifold. The range is supplemented by variants conforming to DVGW EN 161 and explosion-proof variants. Push-in fittings can be selected for a flexible hose connection. In combination with a plug conforming to DIN EN 175301-803 shape B, the valves satisfy degree of protection IP65
• Direct-acting and compact small valve up to DN 2.4
• Slipped over coil system

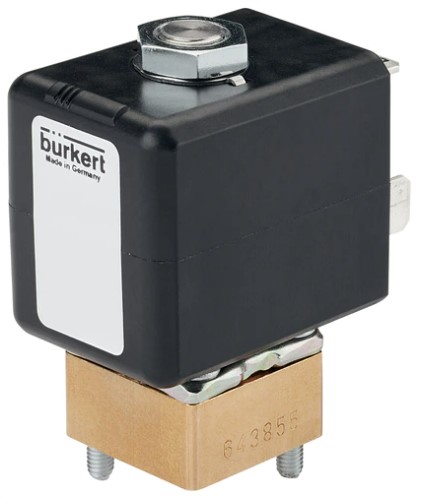

• Simple and fast flange or manifold mounting
• Quick coupling (push-in fitting) for push-in connectors

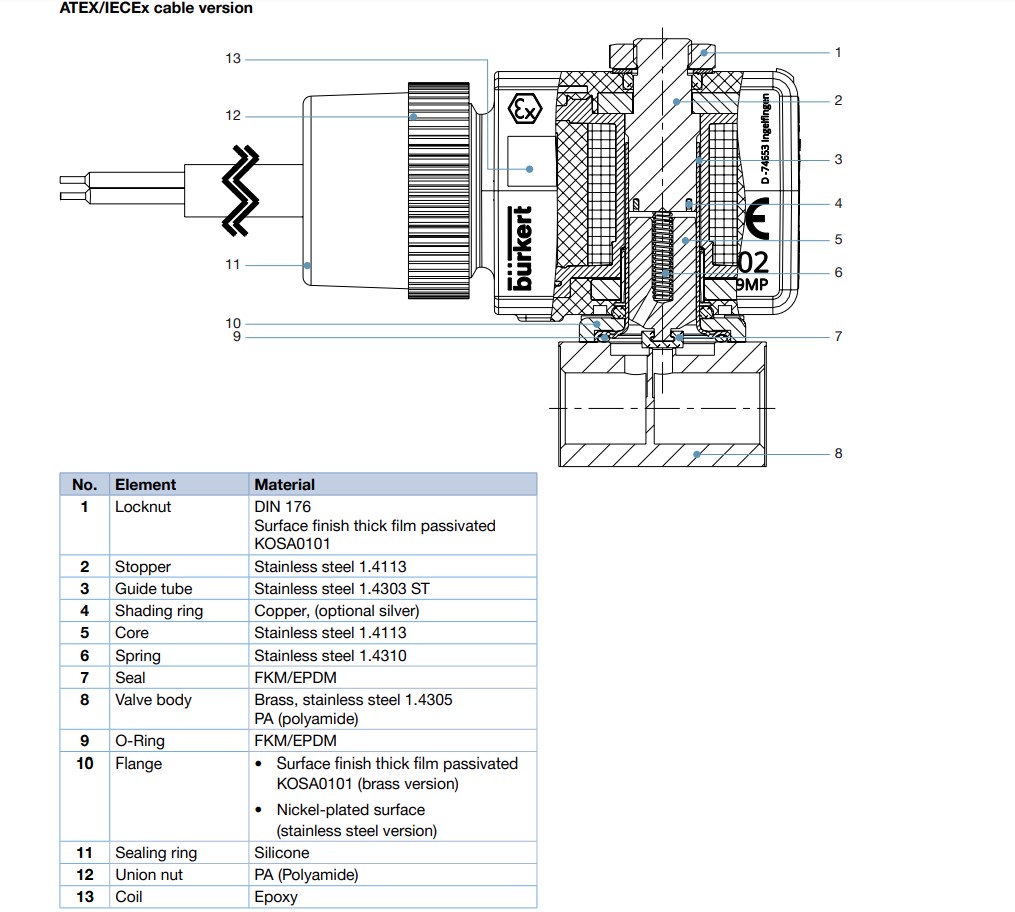

• Explosion-proof variants
